Understanding CNC Milling Tool Holders: Structure, Function, and Selection #
CNC milling tool holders are fundamental components in modern machining, acting as the critical interface between the machine spindle and the cutting tool. Their primary role is to securely grip the cutting tool, ensuring stable rotation and precise movement throughout milling operations. This stability is essential for achieving optimal cutting performance and maintaining high levels of accuracy.
Beyond simply holding the tool, CNC tool holders contribute significantly to reducing vibrations, maintaining alignment, and supporting high-speed machining. The design and quality of a tool holder directly influence machining outcomes, affecting surface finish, tool longevity, and overall productivity. Selecting the appropriate tool holder involves considering factors such as spindle type, machining speed, tool type, and required tolerances. A well-matched tool holder not only enhances performance but also extends the lifespan of both the tool and the machine spindle.
Key Components of a CNC Milling Tool Holder #

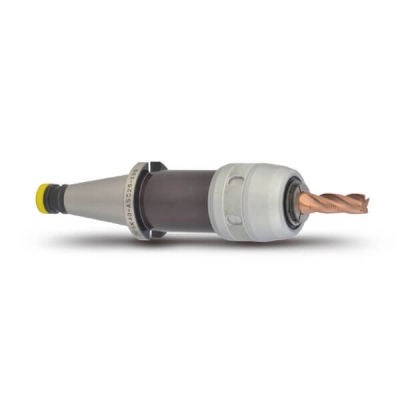

A typical CNC milling tool holder consists of three main parts:
- Taper: Ensures a precise and secure fit between the holder and the machine spindle, minimizing vibrations and improving machining accuracy.
- Flange: Adds stability and rigidity, preventing unwanted movement during cutting operations.
- Collet Pocket: Firmly holds the cutting tool, guaranteeing proper alignment and concentricity for consistent results.
Product Series Overview #
ANN WAY offers a diverse range of tool holders, each designed to meet specific machining requirements. The main series include:

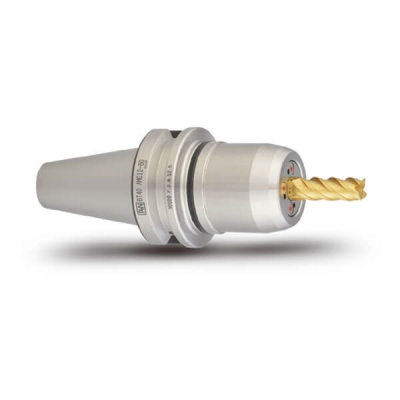

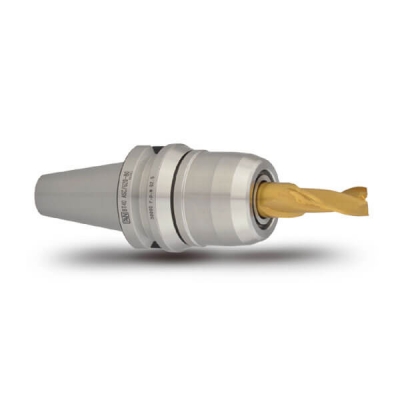

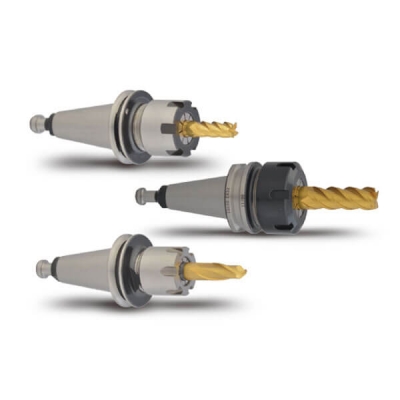

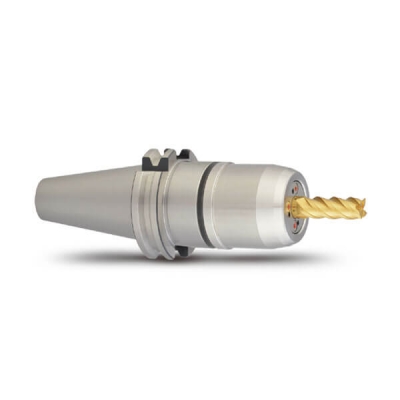

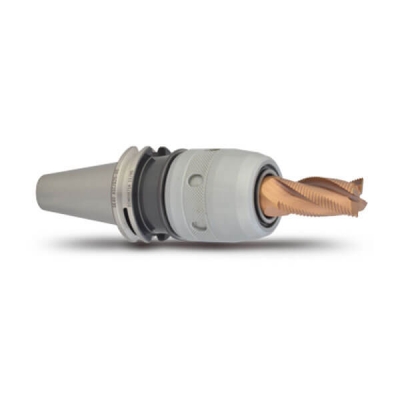

BT / NT Series
ISO / NBT Series

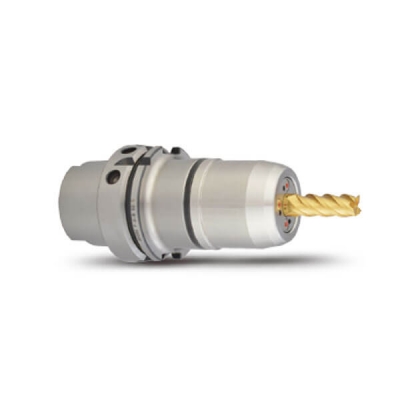

HSK Series
SK Series DIN69871A
SK Series DIN2080
CAT Series
ABT Series

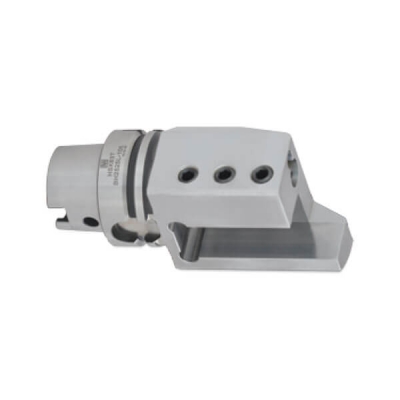

HSK-T Series
Accessories
Each series is tailored for different spindle interfaces and machining needs, offering a wide selection of holders, chucks, collets, boring heads, and accessories.
Advantages of ANN WAY CNC Tool Holders #
ANN WAY’s CNC milling tool holders are manufactured with a focus on quality and precision. Key benefits include:
- High Accuracy and Performance: Engineered to tight tolerances, these tool holders deliver minimal runout and improved concentricity, supporting consistent and reliable machining results.
- Quality Manufacturing: Produced in ISO9001-certified facilities using high-grade materials, ensuring durability and long-term reliability.
- Innovative Features: Incorporation of advanced design elements, such as coolant-through technology, enhances cooling efficiency and extends tool life.
Explore Further #
For those seeking dependable CNC machining tool holders, ANN WAY provides a comprehensive product range designed to meet the demands of modern manufacturing. To learn more about available solutions or to make an inquiry, visit the Contact Us page.
